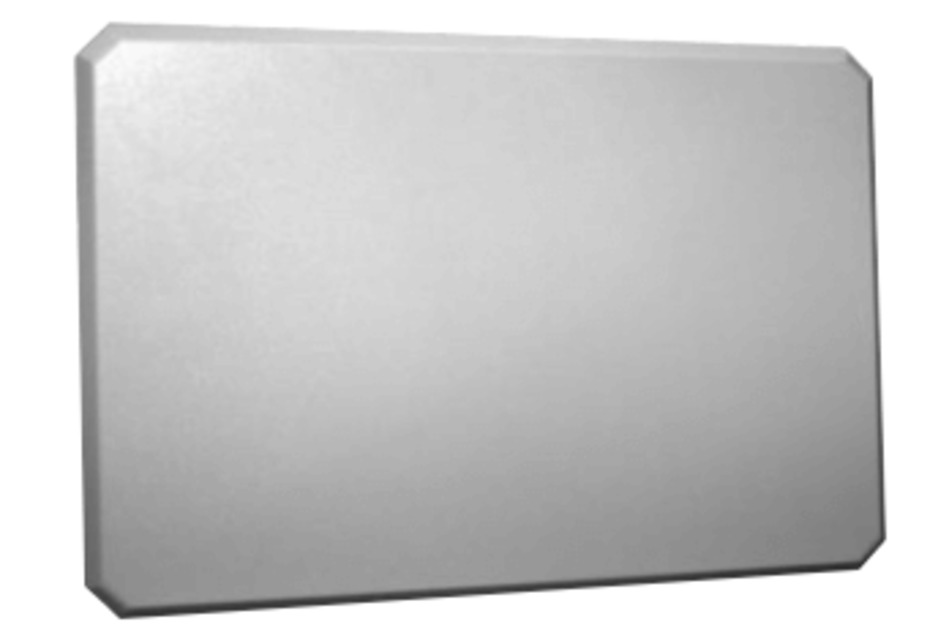

AT-2101-DP Antenna
5GHz dual polarized high gain 21dBi directional antenna
Specifications for AT-2101-DP Antenna
![AT-2101-DP | AT-2101-DP Antenna [AT-2101-DP Antenna Pattern]](https://productresources.vistancenetworks.com/admin/ImageServer.php?ID=abc667a0e25fd6ec71081730429156a196781df884eaa00a916904c0e0b930f3:79676@kbl572&class=Mamfile&rand=d3241b7e8204a0f4b1fb1c563a63987e&omitPreview=true&downloadname=at-2101dp-pattern-th.png&preset=11)
Product classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Product Type | Antenna |
| Product Brand | RUCKUS® |
General Specifications
| Application | Long range backhaul /PtP/PtMP Non-Root |
| Antenna Gain | 21 dBi |
| Polarization | Vertical & Horizontal |
| Connector Location | Two N-type, two 1 m RF cables included |
| IP Rating | IP-67 |
| Mounting | Wall/Pole Mount, mounting kit included |
| Wi-Fi Band | 5 GHz |
| Bandwidth H/V @ 3 dB | 10/10 degrees |
Dimensions
| System Dimensions | 305 mm × 305 mm × 15 mm |
Environmental Specifications
| Operating Temperature | -55 °C to +65 °C (-67 °F to +149 °F) |
Packaging and Weights
| Weight, net | 900 g | 1.984 lb |
