RUCKUS Point d’accès intérieur R750

Very High-Performance Wi-Fi 6 4x4:4 Indoor Access Point with 3.5 Gbps max rate and Embedded IoT

RUCKUS R750 Indoor Access Point Features

The R750 is based on the latest Wi-Fi 6 standard and bridges the performance gap from ‘gigabit’ Wi-Fi to ‘multi-gigabit’ Wi-Fi in support of the insatiable demand for better and faster Wi-Fi. The R750 is the first ever Wi-Fi 6 AP to be granted Wi-Fi CERTIFIED 6 status by the Wi-Fi Alliance. As part of Wi-Fi Alliance's testbed, the R750 validates other devices for Wi-Fi CERTIFIED 6 interoperability certification.

The R750 makes it easy to deliver reliable, secure, high-performance connectivity in transit hubs, auditoriums, conference centers and other high traffic indoor spaces.

The RUCKUS R750 is our high-end dual-band, dual-concurrent Wi-Fi 6 AP that supports 8 spatial streams (4x4:4 in 5GHz, 4x4:4 in 2.4GHz). The R750, with OFDMA and MU-MIMO capabilities, efficiently manages up to 1024 client connections with increased capacity, improved coverage and performance in ultra-high dense environments.

Also, wireless requirements within enterprises are expanding beyond Wi-Fi with Bluetooth® Low Energy, Zigbee and many other non-Wi-Fi wireless technologies. Enterprises need a unified platform to eliminate network silos. The RUCKUS AP portfolio is equipped to solve these challenges through wireless convergence.

The R750 is also easy to manage through RUCKUS physical and virtual cloud management options.

Specifications for RUCKUS R750 Indoor Access Point

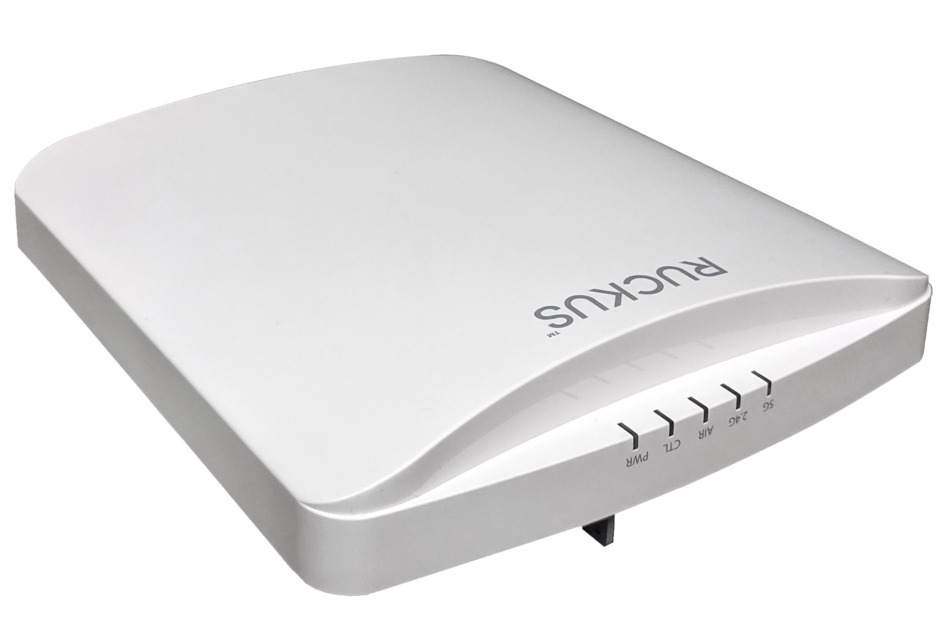

R750 | RUCKUS R750 Indoor Access Point [ruckus-r750-top-lowres]
Disponibilité régionale Asie | Australie/Nouvelle-Zélande | EMEA | Amérique latine | Amérique du Nord
Type de produit Point d’accès intérieur
Marque du produit RUCKUS®
Antenna Patterns, per band 4000+
Antenna Gain Up to 3 dBi
BeamFlex Oui
ChannelFly Oui
Utilisateurs concurrents 1024
Controller Support SmartZone RUCKUS | RUCKUS Unleashed™ | RUCKUS ZoneDirector | Standalone
Ports Ethernet 1 x 1 GbE | 1 x 2.5 GigE
Assistance IdO IdO embarqué
Nombre de radios Double radio
PD-MRC Oui
PHY Rate at 2.4 GHz, maximum 1148 Mo/s
PHY Rate at 5 GHz, maximum 2400 Mo/s
Combined Max PHY Rate 3548 Mo/s
Chaînes et flux radio 4x4:4
Rx Sensitivity at 2.4 GHz -102 dBm
Rx Sensitivity at 5 GHz -102 dBm
SmartMesh Oui
USB USB 2,0
Type de lieu Formation | Hôtellerie | Bureau/Commerce de détail | Lieu public
Sous-type de lieu Cafétéria/Salle à usages multiples | Bibliothèques | Halls/espaces communs | Salles de réunion | Salles VIP
Bandes Wi-Fi prises en charge 2,4 GHz | 5 GHz
Génération Wi-Fi Wi-Fi 6
Norme d’interface Wi-Fi IEEE 802.11a/b/g/n/ac/ax
Température de fonctionnement 0 °C to +50 °C (+32 °F to +122 °F)
