RUCKUS H550 Indoor Access Point Features
In hotels, apartment buildings, and other multi-dwelling structures, wireless connectivity can carry a hefty price tag. You need to connect a wide range of wired devices - IPTV set-top boxes, IP phones, networked minibars - IoT devices like smart locks and sensors - while delivering a great wireless experience for guests.
The RUCKUS H550 wall-mounted access point, IoT gateway and Ethernet switch makes it easy to support the most demanding in-room connectivity requirements. It starts with RUCKUS patented Wi-Fi optimization intelligence to deliver the industry's highest-performing wireless connectivity. Combine that with four-ports of Gigabit Ethernet to connect multiple in-room wired devices, without extra cabling and add supports for Zigbee® and Bluetooth® Low Energy, as well as other protocols via optional USB modules. Put it all in a sleek low-profile design that can be discretely installed over a standard electrical outlet.
Deliver the full range of in-room services while dramatically reducing cabling, installation time, and construction costs.
The RUCKUS H550 wall-mounted access point, IoT gateway and Ethernet switch makes it easy to support the most demanding in-room connectivity requirements. It starts with RUCKUS patented Wi-Fi optimization intelligence to deliver the industry's highest-performing wireless connectivity. Combine that with four-ports of Gigabit Ethernet to connect multiple in-room wired devices, without extra cabling and add supports for Zigbee® and Bluetooth® Low Energy, as well as other protocols via optional USB modules. Put it all in a sleek low-profile design that can be discretely installed over a standard electrical outlet.
Deliver the full range of in-room services while dramatically reducing cabling, installation time, and construction costs.
Specifications for RUCKUS H550 Indoor Access Point

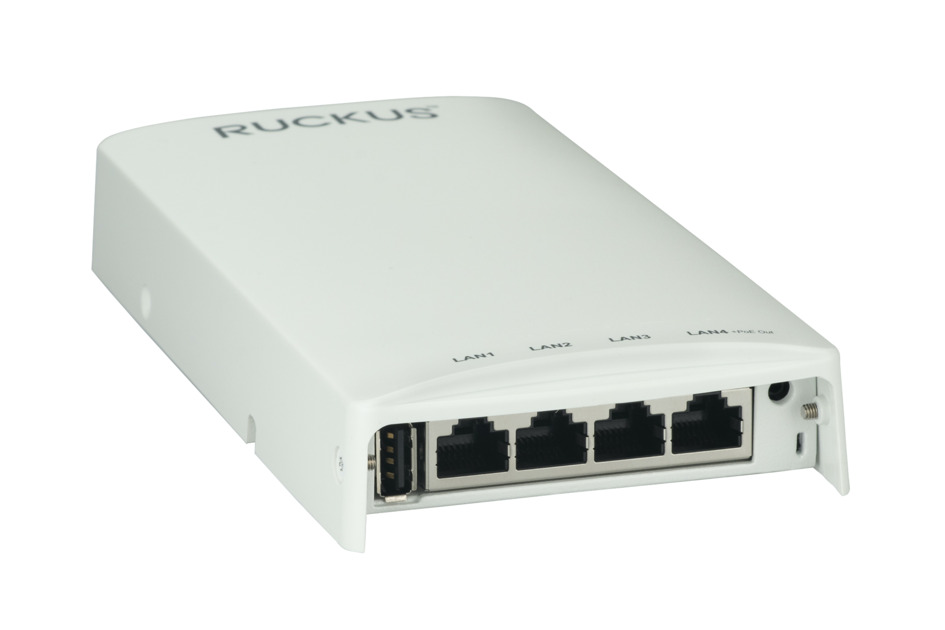

![H550 | RUCKUS H550 Indoor Access Point [H550_UpRight]](https://www.ruckusnetworks.com/globalassets/digizuite/966223-h550-upright.png/medium?mediaformatid=50103)
Product Classification
Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
Product Type | Indoor access point |
Product Brand | RUCKUS® |
General Specifications
Antenna Patterns, per band | 16 |
Antenna Gain | Up to 1 dBi |
BeamFlex | Yes |
ChannelFly | Yes |
Concurrent Users | 512 |
Controller Support | RUCKUS Cloud™ | RUCKUS SmartZone | RUCKUS Unleashed™ | RUCKUS ZoneDirector |
Ethernet Ports | 5 x 1 GbE |
IoT Support | IoT Onboard (dual-concurrent) |
Number of Radios | Dual-Radio |
PD-MRC | Yes |
PHY Rate at 2.4 GHz, maximum | 574 Mb/s |
PHY Rate at 5 GHz, maximum | 1200 Mb/s |
Combined Max PHY Rate | 1774 Mb/s |
Radio Chains and Streams | 2x2:2 |
Rx Sensitivity at 2.4 GHz | -100 dBm |
Rx Sensitivity at 5 GHz | -100 dBm |
SmartMesh | Yes |
USB | USB 2.0 |
Venue Type | Education | Hospitality |
Venue Sub-Type | Guest Rooms | Residence Hall |
Wi-Fi Bands Supported | 2.4 GHz | 5 GHz |
Wi-Fi Generation | Wi-Fi 6 |
Wi-Fi Interface Standard | IEEE 802.11a/b/g/n/ac/ax |
Environmental Specifications
Operating Temperature | 0 °C to +40 °C (+32 °F to +104 °F) |
