RUCKUS ICX 7150-C12P

Base Product: ICX7150

Entry-Level Access Compact 12 Ports 1G PoE Switch

Specifications for RUCKUS ICX 7150-C12P

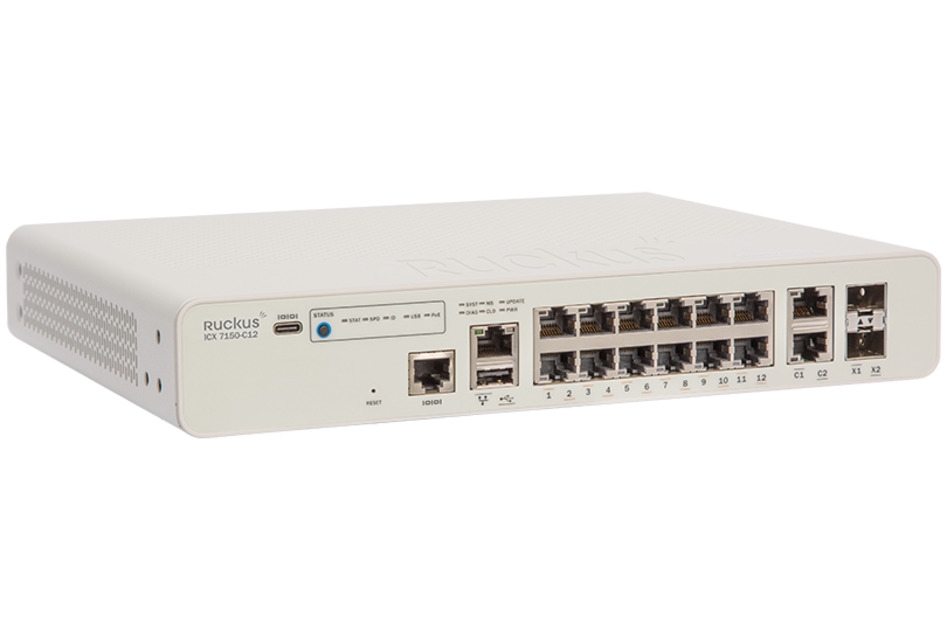

ICX7150-C12P | RUCKUS ICX 7150-C12P [icx7150-c12p_right]
Regional Availability Asia | Australia/New Zealand | EMEA | Latin America | North America
Product Type Ethernet switch
Product Brand RUCKUS®
Switching Capacity, maximum 68 Gb/s
1 GbE RJ45 Ports, quantity, maximum 12 + 2
1 GbE SFP Ports, quantity, maximum 2
10 GbE SFP+ Ports, quantity, maximum 2
PoE Power Budget, maximum 124 W
Switches per Stack, maximum 12
Aggregate Stack Bandwidth, maximum 240 Gb/s
PoE/PoE+ Yes
Stacking Yes
sFlow Yes
Layer 3 (STATIC, RIP, OSPF) Yes
OpenFlow with Hybrid Port Mode Yes
Campus Fabric Technology Yes
Redundant Power Option No
Hot Swap Internal Power Supplies & Fans No
802.3bt2 (90 W PoE Power per Port) No
VRF No
EEE (Energy Efficient Ethernet) No
IPsec VPN, with service module No
MACsec No
BGP No
Reversible Airflow Option No
VxLAN No
Multi Chassis Trunking (MCT) No
