RUCKUS ICX 8100-24P
Base Product: ICX8100
Entry-Level Access 24 Ports 1G PoE Switch
Specifications for RUCKUS ICX 8100-24P

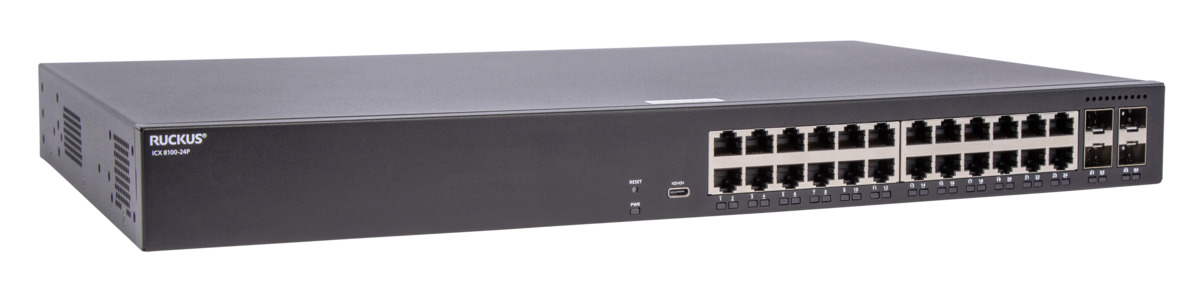

![ICX8100-24P | RUCKUS ICX 8100-24P []](https://productresources.vistancenetworks.com/admin/ImageServer.php?ID=e9f67f154351d425628001dae57d0133d9672d9d1110471ebe623de20b4ac859:77555@kbl572&class=Mamfile&rand=8d8d5f4c3e5a027fd3afb7651bfbb688&omitPreview=true&downloadname=RUCKUS-ICX8100-24P-front.png&preset=11)
Product classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Product Type | Ethernet switch |
| Product Brand | RUCKUS® |
General Specifications
| Switching Capacity, maximum | 132 Gb/s |
| 1 GbE RJ45 Ports, quantity, maximum | 24 |
| 1 GbE SFP Ports, quantity, maximum | 4 |
| 10 GbE SFP+ Ports, quantity, maximum | 4 |
| PoE Power Budget, maximum | 370 W |
| PoE/PoE+ | Yes |
| Stacking | No |
| sFlow | Yes |
| Layer 3 (STATIC, RIP, OSPF) | No |
| OpenFlow with Hybrid Port Mode | No |
| Campus Fabric Technology | No |
| Redundant Power Option | No |
| Hot Swap Internal Power Supplies & Fans | No |
| 802.3bt2 (90 W PoE Power per Port) | No |
| VRF | No |
| EEE (Energy Efficient Ethernet) | Yes |
| IPsec VPN, with service module | No |
| MACsec | No |
| BGP | No |
| Reversible Airflow Option | No |
| VxLAN | No |
| Multi Chassis Trunking (MCT) | No |
Regulatory Compliance/Certifications
| Agency | Classification |
CHINA-ROHS
|
Above maximum concentration value |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
